Chii chinonzi Anode Material?

Anode material ndiyo negative electrode component mumabhatiri uko oxidation inoitika panguva yekubuda, ichiburitsa maerekitironi anoyerera achienda kune cathode kuburikidza nekunze redunhu. Mumabhatiri elithium-eion, anode zvinhu zvinochengeta lithium ions panguva yekuchaja uye kuaburitsa panguva yekubuda. Izvi zvinhu zvinotarisisa zvakakomba bhatiri hunhu zvinosanganisira kumhanyisa kumhanya, simba rekuchengetedza simba, hupenyu hwekutenderera, uye kuchengetedza kuita. Anode inonyanyo zivikanwa ndeye graphite, iyo inoita 98% yemabhatiri erithium-ion ekutengesa, asi silicon-yakavakirwa dzimwe nzira dziri kubuda dzekushandiswa kwesimba repamusoro.

Battery anode inotsamira kumhuri dzakasiyana-siyana, imwe neimwe ichipa kutengeserana kwakasiyana-kubvisa pakushandisa kuchengetedza magetsi.

Graphite ndiyo inonyanya kugadzirwa yelithium-ion bhatiri rinogadzirwa, richitora chikamu chinosvika 98% chemusika weanode kubva muna 2024. Kabhoni-yakagadzirika iyi inochengeta maioni elithium pakati pemapepa ayo akaiswa graphene panguva yekuchaja. Natural graphite, yakatorwa mumamineral deposits, inopa huwandu hwepamusoro pamitengo yakaderera yekugadzira asi inosangana nekuwedzera kwemaitiro panguva yekuchaja-kubuda. Synthetic graphite inogadziriswa-tembiricha yepamusoro kupfuura 2,500℃, ichigadzira zvimiro zvemukati zvakadzikama zvinorebesa hupenyu hwebhatiri uye kuita kuti ichajike nekukurumidza kuburikidza neawandary lithium{10}}ion pathways.

Iyo theoretical yakanyanya kugona yegraphite inogara pa372 mAh/g, inowanikwa kana imwe lithium ion pairi nemaatomu matanhatu ecarbon mune yakazara lithiated state (LiC₆). Nepo vagadziri vasvika padanho iri kuburikidza nemakumi emakore ekugadzirisa, sirin'i ye graphite yakasundira indasitiri kuti iongorore pamusoro-dzimwe nzira dzekushanda.

Silicon inomiririra yakanyanya kuvimbiswa-inogonesa imwe nzira, inochengeta 4.4 lithium ions paatomu resilicon zvichienzaniswa negraphite's 6:1 carbon-ku-lithium ratio. Atomic iyi-level advantage inoturikira kuhunyanzvi hwedzidziso hunodarika 3,600 mAh/g-inoda kupeta kagumi pahukuru hwegraphite.

Dambudziko riri mukuwedzera kwesilicon vhoriyamu. Munguva ye lithiation, silicon particles inozvimba neanenge 300-400% yehukuru hwavo hwepakutanga. Kuwedzera uku kunogadzira kushushikana kwemechanic kunotsemura zvinhu, kutyora kubatanidza magetsi, uye kukonzeresa kukurumidza kuderedzwa. Yekutanga yakachena silicon anode yakarasa huwandu hwakawanda mukati megumi ekuchaja kutenderera.

Nzira dzekutengesa dzazvino dzinosanganisa silicon negraphite mune zvakaumbwa zvimiro. POSCO Future M yakaunza sililicon-carbon anode muna Kurume 2025 ichipa kashanu girafu rekuchengetedza, ine kugadzirwa kwakawanda kwakanangidzirwa muna 2027. LG Energy Solution ndiyo yakava yekutanga kugadzira 5% sililicon{5}}doped anodes kumotokari dzemagetsi muna 2019. data kubva kuIndastiri kubva muna 2024 rinoratidza huremu huri pasi pe8% huremu hwezvinhu zvekutengesa hunoramba huri pasi pe8% kuwedzera simba density.

LTO anodes inoshanda nemagetsi epamusoro (akapoteredza 1.55V vs. Li/Li⁺) zvichienzaniswa negirafu riri pedyo-nezero. Iyi voltage positioning inodzivirira kuumbwa kwelithium dendrite-tambo dzesimbi dzinogona kubaya zvinoparadzanisa mabhatiri uye kukonzera maseketi mapfupi. Zvinhu izvi zvinochengetedza kugadzikana panguva yekuchovha bhasikoro nekuchinja kushoma kwevhoriyamu, zvichiita kuti zvikodzere kuchengetedzwa-zvakakosha zvinoshandiswa mundege nengarava dzinotakura vanhu.

Kutengeserana{{0}kunopera kunouya mukuwanda kwesimba. LTO's high operating voltage inoderedza iyo yese cell voltage kana yapetwa neyakajairwa cathodes, inodzikamisa huwandu. Ongororo yemuna 2024 muEnergy & Environmental Materials yakaratidza kushandiswa kweLTO mukuchengetedzeka kwakanyanya-inoda mamiriro apo njodzi yakadzikira yekumhanya kwemafuta inodarika kunetseka kwesimba.

Lithium metal anodes inosundidzira kugona kwetioretical kusvika pa3,860 mAh/g-kapfuura kagumi painogumira graphite. Panzvimbo pekuchengeta lithium ion mukati memugadziriso, lithium simbi anodes electrodeposit lithium yakananga pamusoro panguva yekuchaja. LG Energy Solution inoronga kuunza lithium metal anodes mu-inodhi yemasisitimu mukupera kwa2027, ichiwedzera kusvika-maapplications epamusoro pashure.

Tsvagiridzo inoenderera mberi pakushandura-mhando yeanodhi vachishandisa metal oxides nemaphosphides, alloy{1}based materials zvinosanganisira tin negermanium, neorganic anode compounds. Izvi zvinoramba zviri mumatanho ebudiriro kubva muna 2025.

Anode Material

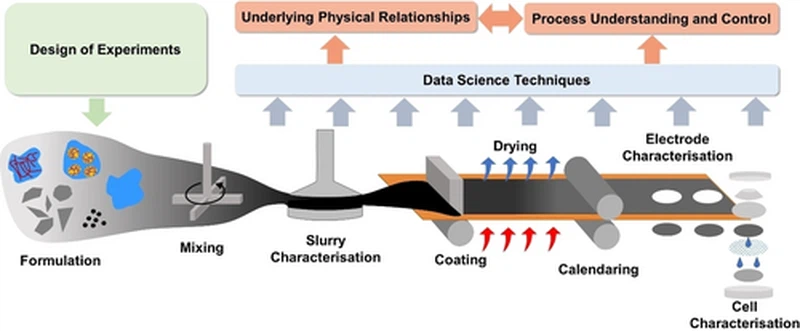

Kugadzirwa kweanode kunosanganisira akawanda matanho chaiwo zvisinei nemhando yezvinhu.

Raw materials inogadzirwa kuita anode compounds inoshanda, yobva yagayiwa kuita hupfu hwakatsetseka uye yakasanganiswa nemabhainda uye maconductive additives kugadzira slurries. Kune magraphite anode, vagadziri vanopfekedza slurry iyi pafoiri yemhangura yezvino unganidza. Mapepa akavharidzirwa anopfuura nepakati pemahovheni ekuomesa kuti abvise zvinonyungudutsa uye kuchengetedza zvinhu zvinonamatira. Iyo calendering process inomanikidza uye inotsvedzerera iyo yekupfeka kuburikidza nema roller, ichiva nechokwadi chekukora yunifomu uye kunamatira kwakakodzera.

Silicon-graphite composite inoda kumwe kugadziridzwa kuti igadzirise kuwedzera kwevhoriyamu. Maitiro epamberi anosanganisira nanostructuring silicon kuita zvimedu zviri pasi pe100 nanometers, kupfekedza silicon nekabhoni shells kuti ivhare kuwedzera, uye kupinza silicon mukati meporous graphite matrices. Kemikari vapor deposition nzira dzinogona kugadzira nano yakafanana-chikero chesilicon yakaparadzirwa mumakabhoni zvimiro, kunyangwe pakuoma kwekugadzirwa kwepamusoro.

Anode Material

Zvinoshanda anode zvinhu zvinofanirwa kusangana akati wandei anokwikwidza zvinodiwa.

Chaiyo Capacity: Zvigadzirwa zvepamusoro zvinochengetedza simba rakawanda pahuremu hweyuniti. Nepo magirafu achikura anosvika 360 mAh/g pakuita, silikoni-carbon composites parizvino inopa 450-500 mAh/g pazvikero zveindasitiri.

Electrical Conductivity: Zvishandiso zvinoda kukwana kwemagetsi kufamba kuti kuderedze kurasikirwa kwesimba. Graphite yakanakisa conductivity inoita kuti ive yakanaka, nepo silicon yakachena ichida kabhoni additives kana machira kuchengetedza kuyerera kwazvino.

Structural Stability: Zvishandiso zvinofanirwa kumira zvakadzokororwa lithium kuiswa uye kudhirowa pasina kushatisa. Graphite inochengetedza chimiro zvakanaka, asi kuwedzera kwesilicon kunoda maumbirwo emubatanidzwa kudzivirira kupaza.

First Cycle Efficiency: Yekutanga kuchaja kutenderera kunoita -electrolyte interphase (SEI) layer inopedza lithium zvisingadzokeki. Kuderera kwekutanga{{2}kugona kutenderera kunoreva kushomeka kunowanikwa. Graphite inowanzoita 90-93% kwekutanga kunyatsoita, nepo silicon zvinhu zvenhoroondo zvakamira pa70-85%.

Cycle Life: Mabhatiri ekutengesa anonangidzira 800-1,200 kuchaja macycles ane 80% simba rekuchengetedza. Graphite inopfuura nyore bhenji iyi. Silicon-carbon composites yakagadziridzwa kubva pamazana matatu-500 kutenderera kusvika mazana masere-gumi nemazana maviri ematenderedzwa kuburikidza nehunyanzvi hwekugadzirisa hunyanzvi hwakagadziridzwa pakati pa2023-2025.

Musika weanode zvinhu wakasvika pamadhora mazana matatu nemazana mashanu emadhora muna 2024 uye mapurojekiti kusvika kumadhora zviuru gumi nezvina nemazana manomwe nemakumi matatu nemazana mashanu panosvika 2034, achikura pa15.7% pagore maererano neInsightAce Analytics. Kuwedzerwa uku kunoenderana nekutorwa kwemotokari yemagetsi uye grid-chiyero chekuchengetedza simba.

Anode zvinhu zvinomiririra gumi-15% yemutengo welithium-ion bhatiri cell, zvichienzaniswa nekathode zvinhu' 30-40% share. Muna 2024, mitengo yebhatiri yepakiti yakaderera 20% kusvika ku $ 115 / kWh-yakanyanya kuderera kubvira 2017. BloombergNEF inotaura izvi nekugadzirwa kwemasero, hupfumi hwekuyera, uye kuderera kwemitengo yesimbi.Lithium bhatiri mutengomuChina yakasvika $94/kWh, nepo US neEurope mitengo yakakwira 31% uye 48% yakakwira zvichiteerana.

Iyi pricing pressure inokanganisa anode material economics. Natural graphite inodhura zvishoma pane zvekugadzira zvakasiyana nekuda kwekuderera kwekugadzirisa zvinodiwa. Silicon{{2}kabhoni composites pari zvino inodhura 750,000 CNY patani muChina, zvinoda kudzikiswa kusvika pa110,000-170,000 CNY patani kuti hupfumi hurambe huripo pa50,000-80,000 CNY patani.

Hukama huri pakati peanode mitengo nemitengo yebhatiri zvinogadzira masimba akaomarara. Sezvo vagadziri vemabhatiri vanosvina miganho kuti vachengetedze chikamu chemusika muna 2025, kumanikidza kunotamisa kumusoro kune vanopa zvinhu. Vagadziri veanode vanopindura nekugadzirisa zvinogoneka kugadzira uye nekutsvaga zvinotevera-zvinhu zvechizvarwa zvinopembedza mitengo yeprimiyamu kuburikidza nekuita zvakanaka.

Mari yemidziyo inochinja zvakanyanya. Mitengo yeLithium carbonate yakadonha kubva pamadhora makumi manomwe ezviuru patani muna 2022 kusvika pasi pemadhora gumi nemashanu muna 2024. Kunyange zvazvo zvinhu zvecathode zvine zvakawanda zvelithium, kushanduka kwemitengo uku kuchiri kukanganisa kugadzirwa kweanode kuburikidza nemari ye electrolyte uye kukanganiswa kweketani.

China inotonga kugadzirwa kwezvinhu zveanode, ichigadzira njodzi dzekuchengetedza izvo zvakakurudzira vese Dhipatimendi reMagetsi reUS neEuropean Commission kunyora magirafu echisikigo sechinhu chakakosha. Muna 2024, vagadziri veChinese vakaverengera 90% yepasi rose graphite anode kubuda.

Kumadokero kugadzirwa kwesimba kuri kuwedzera asi kunoramba kuri kushoma. Vagadziri vekuNorth America vakaita seSyrah Resources, Northern Graphite, uye Nouveau Monde vari kugadzira cheni dzekugovera, sezvakaita vatambi vekuEurope vanosanganisira Talga Resources neVianode. Kuedza uku kunotarisana nematambudziko anoenderana nemitengo yekugadzirwa kweChinese uku uchisangana nezvinodiwa zvekusimudzira.

Maererano nehuwandu hweSMM, kugadzirwa kwegraphite anode kuChina kwakasvika 1.845 miriyoni yematani muna 2024, zvichikwira 14% gore-pa-gore. Artificial graphite inomiririra 90.6% yevhoriyamu iyi sezvo vagadziri vakashandisa matekinoroji epamberi senge kuenderera mberi graphitization kudzora mitengo. Zvirambidzo zvechisikigo zve graphite kunze kwenyika zvakaendesa vamwe vatengi vekune dzimwe nyika kuenda kune yekugadzira graphite, zvichiwedzera kuwedzera chikamu chayo chemusika.

Mashandisirwo akasiyana anoda akasiyana anode maitiro.

Mabhatiri emotokari yemagetsi anokoshesa kuwanda kwesimba uye kuchaja nekukurumidza. Silicon-doped graphite anodes inobatsira kuwedzera kutyaira, nesilicon content ichiwedzera zvishoma nezvishoma sezvo vhoriyamu yekuwedzera mhinduro inovandudza. Tesla, BMW, uye mamwe maautomaker akazivisa kudyidzana nevagadziri vesilicon anode kuti vashandise pakati pa2025-2027.

Consumer electronics inodzikamisa simba density nehupenyu hwekutenderera uye kuchengeteka. Mafonifoni nemalaptops anowanzo shandisa optimized graphite anode iyo inoburitsa nekuvimbika 500-1,000 kuchaja kutenderera mumakore akawanda ekushandiswa.

Giridhi-masisitimu ekuchengetedza simba anosimbisa hupenyu hwekutenderera uye mutengo pamusoro pehuwandu hwesimba sezvo kunetsa kwenzvimbo kudiki. Aya maapplication anowanzo shandisa LFP (lithium iron phosphate) cathodes akabatanidzwa nemagraphite anode kwenguva yakareba-kugadzikana. Kumwe kuisirwa kunoongorora LTO anode uko kuchengetedzeka uye hupenyu hurefu hunopembedza mitengo yakakwira.

Tsvagiridzo yakaburitswa muScientific Reports muna Kukadzi 2024 yakaratidza bio-based anode kugadzirwa kuburikidza necatalytic graphitization yebiochar. Vachishandisa trimetallic hybrid catalyst (nickel, iron, and manganese), vaongorori vakawana 89.28% graphitization℃uye 73.95% kutendeuka mitengo, vachipa imwe inoenderera kune petroleum-based graphite.

Nanostructuring kufambira mberi kunoenderera mberi nekuvandudza silicon anode kuita. Nzira dzinosanganisira kugadzira masilicon nanowires akasungirirwa kune anounganidza ikozvino, encapsulating silicon mugraphene shells, uye kugadzira core-shell particle structures. Group14 Technologies ine patent yesilicon-carbon composite inoita 50% yepamusoro volumetric energy density pane yakajairika graphite.

Surface coating technologies inogadzirisa SEI layer kusagadzikana. Yepamberi mabhandi senge polyacrylic asidhi uye carboxymethyl cellulose zvirinani kugarisa silicon's vhoriyamu shanduko kana ichienzaniswa neyechinyakare polyvinylidene fluoride. Maelectrolyte matsva ekuwedzera anobatsira kuumba maraya akatsiga eSEI anoramba kutsemuka panguva yekuwedzera-macontraction cycles.

Anode Material

Kunzwisisa zvinhu zveanode zvinoda kuongorora maitiro chaiwo anoita-mafambiro ebhatiri repasi rose.

Bhatiri re smartphone rine angangoita 15-20 magiramu eanode material. Uchishandisa graphite pa 350 mAh/g chaiyo chiyero, izvi zvinopa nezve 5.25-7 Wh yesimba rose rebhatiri. Kuchinjira kune 10% silicon composite pa450 mAh/g kwaizosimudzira izvi kusvika 6.75-9 Wh-inoda kuwedzera 20-25%.

Kukurumidza kuchaja kugona kunoenderana zvakanyanya pane anode zvivakwa. Graphite inokwanisa kugamuchira mitengo yechaji zvakachengetedzeka kunosvika 1C (yakazara kuchaja muawa imwe), nemagadzirirwo emhando yepamusoro anosvika 2-3C. Zvishandiso zveSilicon zvinovimbisa zvakatokwira mitengo nekuda kweiyo lithium's surface deposition mechanism pane yakasimba-state diffusion kuburikidza negraphite layer.

Tembiricha kuita kunosiyana nezvinhu. Graphite anodes njodzi lithium plating patembiricha pazasi 0 dhigirii, uko lithium inoisa sesimbi pane kupindirana zvakanaka. Izvi zvinogadzira njodzi dzekuchengetedza. LTO inoramba ichishanda kusvika pa-30 dhigirii, zvichiita kuti ive yakakodzera kutonhora-mamiriro ekunze kunyangwe kushomeka kwesimba.

Vagadziri vebhatiri vanoongorora anode zvinhu kuburikidza neakamisikidzwa maprotocol. Mafambiro ekugadzira pa 0.1C anogadza baseline kugona uye SEI layer yekugadzira. Chiyero chekugona bvunzo kubhadharisa uye kuburitsa painokwira zvishoma nezvishoma (0.5C, 1C, 2C, 3C) yekuongorora kuendesa simba. Cycle life tests inoita mazana kusvika kuzviuru zvechaji-kubvisa madhiri nematembiricha chaiwo.

Nzira dzepamusoro dzekuisa mavara dzinosanganisira X-ray diffraction yekuongorora chimiro chekristaro, scanning electron microscopy for particle morphology, uye electrochemical impedance spectroscopy yekunzwisisa kuramba uye kutamisa kinetics. Zviyero izvi zvinobatsira vagadziri kukwidziridza particle size, chimiro, nzvimbo yepamusoro, uye maparamendi ekuputira.

Particle size distribution inonyanya kukanganisa kushanda. Zvimedu zvihombe zvinodzikisira nzvimbo, zvichidzikamisa kuita kinetics asi kunatsiridza kutanga-kunyatsoshanda. Zvimedu zvidiki zvinowedzera maitiro ekuita asi zvinogadzira imwe nzvimbo yepamusoro yezvisingadiwe mativi maitiro. Vagadziri vanowanzo tarisa chaiwo saizi yekugovera yakagadziridzwa yekushandisa kwavo, kazhinji mune gumi-20 micrometer renji yegraphite.

Iyo anode yemidziyo munda inoenderera mberi nekukurumidza sezvo kudiwa kwebhatiri kuchikura. Graphite inogona kuramba ichitonga kuburikidza nepakati penguva yakapihwa mabhenefiti emutengo uye macheni ekupa. Kubatanidzwa kweSilicon kunowedzera zvishoma nezvishoma sezvo vagadziri vanogadzirisa matambudziko ekuwedzera. Zvinotevera-zvinhu zvechizvarwa zvakaita selithium simbi zvinomirira mumapaipi ekugadzira kuti zvigadzirise zvigadziriso zvadzo zvehunyanzvi.

Key Takeaways

Anode zvinhu zvinoumba negative electrode mumabhatiri uko oxidation inoitika, ine graphite parizvino iri kutonga pa 98% yemugove wemusika nekuda kwehuwandu hwayo hwe372 mAh/g uye mutengo-kushanda zvakanaka.

Silicon inopa 10x yakakwira theoretical kugona pa3,600+ mAh/g asi yakatarisana ne300-400% vhoriyamu yekuwedzera matambudziko ayo anomisa zvekutengesa silicon zvemukati kusvika pazasi 8% muzvikamu zvakaumbwa kubva muna 2025.

Mitengo yebhatiri yakadzika 20% muna 2024 kusvika pamadhora zana nemakumi mashanu/kWh, iine anode zvinhu zvinomiririra 10-15% yemitengo yese yebhatiri uye kusangana nekumanikidzwa kwemitengo sezvo vagadziri vachikwikwidza pamigero.

Musika weanode zvinhu unofungidzirwa kukura kubva pamadhora mazana matatu nemakumi mashanu emadhora muna 2024 kusvika pamadhora 14.7 bhiriyoni panosvika 2034, uchitungamirwa nekutorwa kwemotokari yemagetsi uye kuwedzera kwekuchengetedza simba.

Zvinotevera-zvishandiso zvechizvarwa zvinosanganisira-masilicon composites akakwirira uye lithium metal anode zvinonangana nekutengeserana pakati pa2025-2027, nevagadziri vakuru vakaita seLG Energy Solution nePOSCO Future M vachitungamira mabasa ebudiriro.
